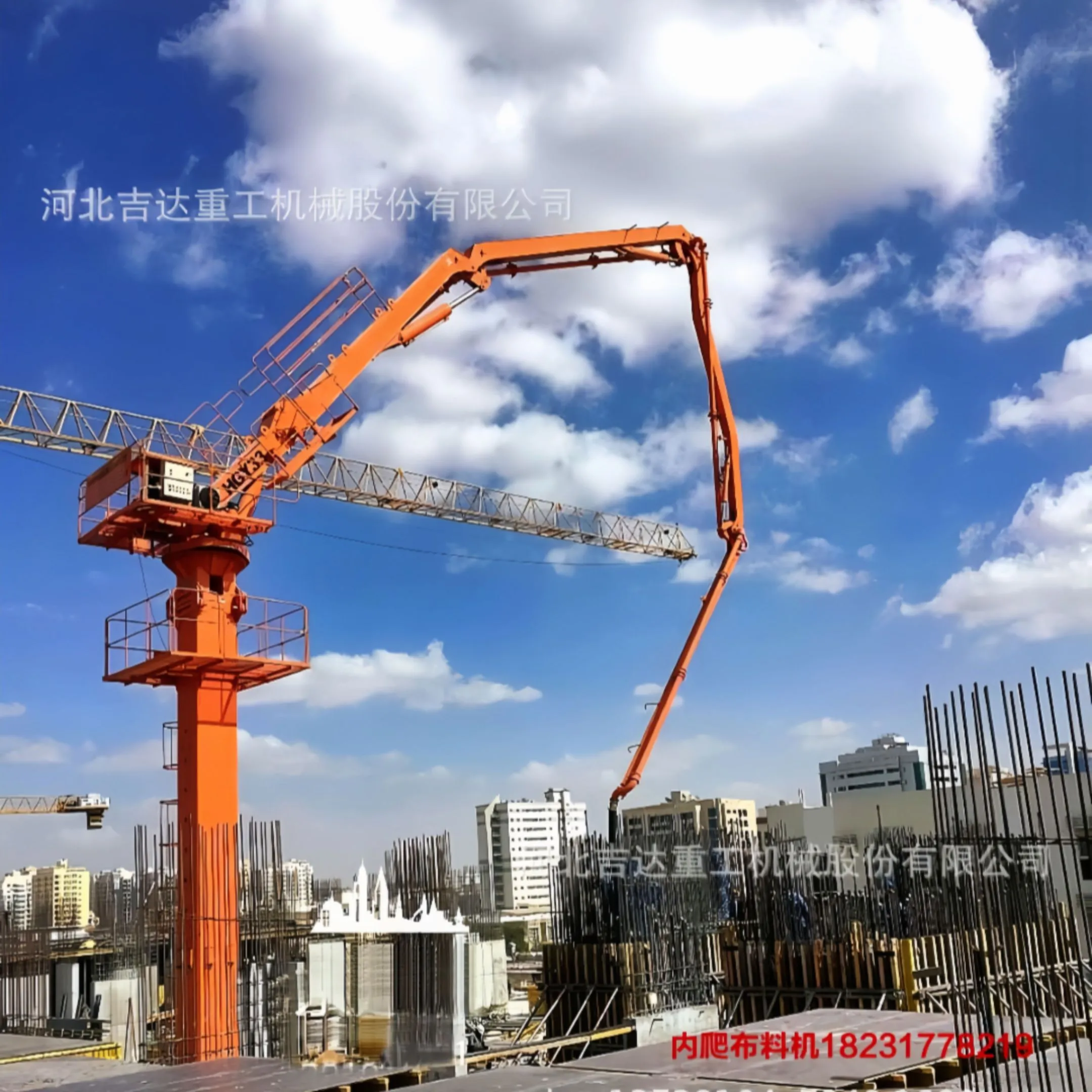

Self climbing concrete placing boom represents an advanced construction solution ideally suited for various concrete structures including high-rise buildings, bridges, foundations, and other architectural works.
Product Description
Max. horizontal reach 17 / 21 / 24 / 28 / 32 / 33 m
This concrete placing boom represents an advanced construction solution ideally suited for various concrete structures including high-rise buildings, bridges, foundations, and other architectural works. Its integrated self-climbing system significantly enhances operational efficiency in vertical construction projects while ensuring superior concrete placement quality and substantial reduction in labor requirements.
Our Self-Climbing Concrete Placing Boom is an advanced, hydraulic-driven auxiliary equipment designed to significantly enhance concrete placement efficiency in high-rise and large-scale construction projects. Engineered for seamless integration with stationary concrete pumps and truck-mounted pumps, this equipment is ideal for expanding the pouring range across multiple floors during building construction.
With models ranging from 17m to 33m placing radius, our self-climbing concrete placing boom offers flexible configurations to meet diverse project requirements. Whether installed in elevator shafts or directly on building floors, the boom utilizes a hydraulic self-climbing system to ascend alongside rising floor levels—eliminating the need for manual disassembly or crane repositioning.
The system comprises:
◈Primary tower structure
◈Automated climbing mechanism
◈360° slewing drive unit
◈Dual-level support base (upper/lower pedestals)
◈Multi-articulated boom assembly
◈Hydraulic power pack
◈Intelligent control system
The tri-sectional boom assembly features robust box-type structural members hydraulically actuated for precision folding/unfolding operations. Through coordinated articulation and rotational movement (210° typical working range), the system achieves comprehensive coverage of all construction zones within its operational radius.
Utilizing its hydraulic climbing mechanism, the equipment ascends through pre-engineered floor penetrations in synchronization with building progression. Maximum placement elevation is determined by the coupled concrete pump's pressure capacity.
✮Pressure relief valves: Protect against system overloads
✮Double-lock hydraulic cylinders: Ensure position retention safety
✮Rotary motion limiter: Prevents uncontrolled boom oscillation
✮Fail-safe braking system: Complies with industrial safety standards
1.Enhanced placement accuracy through computer-assisted positioning
2.Cycle time reduction through automated climbing functionality
3.Reduced manual intervention in vertical transportation
4.Optimized concrete consolidation with controlled placement rates
5.Adaptive configuration for complex architectural geometries
|
Model |
HGY17 |
HGY21 |
HGY24 |
HGY28 |
HGY32 |
HGY33 |
||
|
1 |
Horizontal(m) |
17 |
21 |
24 |
28 |
32 |
33 |
|
|
2 |
Length of booms (m) |
1st section |
6.67 |
7.96 |
9.03 |
10.23 |
14.23 |
8.86 |
|
2nd section |
5.73 |
6.95 |
7.95 |
9.31 |
9.31 |
8.02 |
||
|
3rd section |
4.6 |
6.1 |
7.03 |
8.47 |
8.47 |
8.01 |
||
|
4th section |
– |
7.85 |
||||||
|
3 |
Articulation of booms (°) |
1st section |
0~90 |
0~92 |
||||
|
2nd section |
0~180 |
0~177 |
||||||
|
3rd section |
0~180 |
0~180 |
||||||
|
4th section |
– |
0~181 |
||||||
|
4 |
Rotation angle (°) |
360 |
||||||
|
5 |
Stationary height (m) |
22 |
||||||
|
6 |
Tower structure (mm) |
750×750 |
||||||
|
7 |
Delivery pipe dimension (mm) |
Ф125 |
||||||
|
8 |
Length of hose (mm) |
3000 |
3000 |
3000 |
||||
|
9 |
Mode of operation |
Radio Remote/Cable/Panle control |
||||||
|
10 |
Output (kw) |
5.5 |
11 |
15 |
||||
|
11 |
Hydraulic pressure (Mpa) |
20 |
22 |
20 |
23 |
28 |
||
|
12 |
Power |
380V/50Hz |
||||||
We provide a variety of configurations of concrete placing booms, including floor-fxed self-climbing placing boom, elevator-fixed placing boom，stationary placing boom and other models to meet the needs of different construction scenarios. Our concrete placing booms are made of high-strength steel, with a lightweight boom structure, flexible rotation and strong stability. They are particularly suitable for fine pouring operations such as high-rise building core tubes, bridge piers, and prefabricated component plants. Contact us to provide you with Concrete Pumping Plant solutions!
