Spider Placing Boom – Advanced Concrete Placing Booms by JIDA Heavy Industry

When your project faces challenges such as limited space, complex structures, and the inability to access large equipment, traditional concrete pouring methods often result in low efficiency, high costs, and significant safety hazards. JIDA, as a professional Placing Boom manufacturer, has launched the HGY and FlexFlow series Spider Concrete Placing Booms specifically designed to solve these problems. It's not just a piece of equipment, but an intelligent pouring system that integrates flexibility, efficiency, and safety, designed to conquer extreme construction environments.

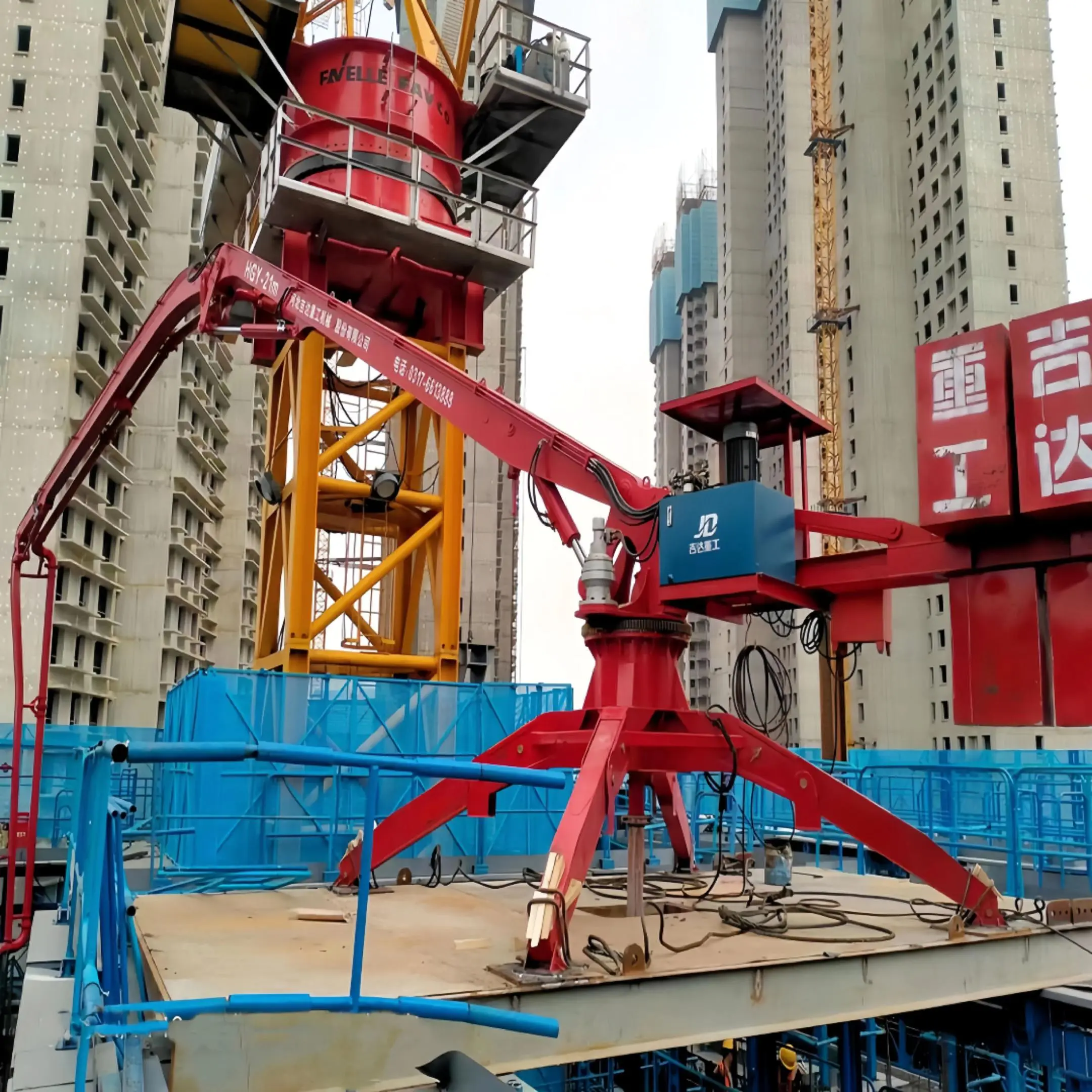

Our spider concrete placing boom systems are fully hydraulic-driven, featuring multiple articulated arms that allow 360-degree rotation and flexible positioning. These booms are engineered for quick setup, easy operation, and minimal site disruption, making them an ideal solution for pouring concrete in columns, shear walls, and slabs.

Key Features & Functional Benefits of Spider Placing Boom

Max.Horizontal Working Reach 13/15/17000/21m

Total Weight without counterweight 2700/3200/4940/5020 kg

1.The placing boom features an innovative Z-shaped/R-shaped configuration with three articulating sections, enabling full 360-degree rotation during luffing and folding operations.

2.The hydraulic control system employs intuitive push-button operation for precise manipulation of boom articulation, folding mechanisms, and rotational movements.

3.Designed with space-efficient engineering, the lightweight modular system offers exceptional portability. The boom can be rapidly deployed on various working surfaces including cast-in-place floors, temporary platforms, lightweight scaffolding, or mobile trailer configurations without requiring permanent fixation.

4.The Spider Concrete Placing Boom demonstrates exceptional adaptability for multi-story construction projects and complex urban job sites.

Main Technical Specification

4 Key Applications for the JIDA Spider Placing Boom

1. High-Rise Building Cores & Shear Walls

Traditional crane-assisted concrete placement is slow, ties up critical equipment, poses significant aerial work risks, and lacks precision.

The JIDA Solution:​ Our Spider Placing Boom​ is easily deployed on slabs or inside the core itself. With its compact footprint and optional self-climbing mechanism, it ascends seamlessly with the structure.

2. Urban Renewal & Building Renovation Projects

Cramped sites, narrow access, strict noise and vibration limits, and minimal space for equipment.

The JIDA Solution:​ The JIDA Spider Placing Boom​ features a modular, lightweight design. It can be disassembled for transport via construction elevators or tight passages and rapidly reassembled on the working floor. Its low-noise, low-vibration operation and minimal space requirement make it the ideal choice for urban infill projects, building renovations, and subway station developments.

3. Large Industrial Plants & Complex Structures

Complex layouts with roof trusses, dense pipe racks, and scattered foundation points make comprehensive concrete coverage difficult.

The JIDA Solution:​ The multi-articulated boom arm with full 360° rotation effortlessly navigates around obstacles. It delivers wide, dead-angle-free concrete distribution, perfectly solving the concrete placement puzzle in intricate industrial settings.

4. Bridge Piers, Tunnels & Underground Works

Limited space inside bridge piers, confined tunnel environments, and restricted underground sites where conventional equipment struggles to operate effectively.

The JIDA Solution:​ The compact chassis and highly flexible boom system provide an efficient concrete placement solution for vertical deep shafts, narrow tunnels, and subterranean spaces. This ensures consistent concrete quality and superior construction efficiency in confined applications.
